HYGIENIC PROCESS COMPONENTS

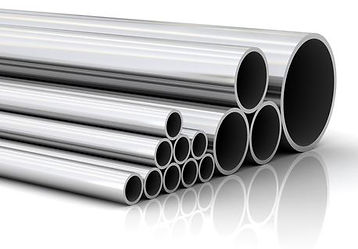

Hygienic Tube and Fittings

Mechanically Polished or Electropolished Tube for use in Pharmaceutical, semi-conductor, biotechnology and other hight purity processes. Our hygienic tube is manufactured to the stringent ASME BPE and ASTM A270 S2 standards making it ideal for most high purity applications.

ASME BPE Tube and Fittings Product Specification

All technical information refer to the current revision of the ASME BPE standard

Materials

  • 316/L

  • 1.4435

  • UNS NO8367/Alloy Al-6XN

  • UNS N060022/Alloy 22

  • Titanium

  • On request

Stainless Steel Chemical composition of weld ends in accordance with ASME BPE, MM-5.1.1 ( 0.005%-0.017 Sulphur)

Dimensions

  • 1/4" to 6"

Tube Length

5940 mm - 6090 mm/ 19.5 ft. - 20,0 ft

Tolerance

According to tables DT - 3 - 2, DT - 3 - 2 and DT - 7 - 1

Welds

  • Weld ends of tube and fittings are prepared for orbital welding

Inner Surface

Tubes and fittings - table SF - 2.4 -1

Test Procedures

  • Verification of material grade

  • Control of dimensions

  • Visual inspection ( endoscope and unaided eye ) :​

     - Internal surface​

     - Welds

  • End preparation

  • Internal surface roughness measurement

Marking

  • ASME BPE SF1 or ASME BPE SF4

  • Manufacture

  • Dimension

  • Material type

  • Heat number

Certified material test report 3.1 as per DIN EN 10204 / ASTM A1016.

Packing

  • Ends of tubes and fittings are capped.

  • Tubes and fittings are packed in bags and labelled with:

     - Part number,​

     - Heat number(s) ,

     - Job number

     - ASME BPE

     - Surface finnish designation.
